Best CAD Software 2026: The Engineer's Honest Guide

CAD (Computer-Aided Design) software selection is one of the highest-stakes engineering tool decisions an organization makes — because it constrains your PLM (Product Lifecycle Management) selection, your simulation toolchain, your manufacturing process, and your supply chain data exchange standards for the next decade. The "best" CAD tool for your organization is the one that fits your program complexity, your industry ecosystem, and the PLM vault that will manage the data it produces.

This guide covers the seven platforms that dominate professional CAD in 2026: CATIA, Siemens NX, PTC Creo, SolidWorks, Autodesk Inventor, Fusion 360, and Onshape.

The 2026 CAD Landscape at a Glance

| Platform | Vendor | Best For | Deployment | License | |---|---|---|---|---| | CATIA | Dassault Systèmes | Aerospace structures, Class-A surfaces, automotive body | Desktop + 3DEXPERIENCE cloud | Per-seat, annual | | Siemens NX | Siemens DISW | Automotive powertrain, precision machining, NX CAM | Desktop + Xcelerator cloud | Per-seat, annual | | PTC Creo | PTC | Industrial equipment, mechanism design, heavy machinery | Desktop + cloud | Per-seat, annual | | SolidWorks | Dassault Systèmes | General mechanical engineering, midmarket | Desktop (SolidWorks Connected cloud option) | Per-seat, annual | | Autodesk Inventor | Autodesk | Plant/factory design, Autodesk ecosystem programs | Desktop | Per-seat, annual | | Fusion 360 | Autodesk | Product development, CAD+CAM integration, generative design | Cloud-native | $680/yr individual | | Onshape | PTC | Distributed teams, cloud-first workflows, startup to midmarket | Cloud-native (no desktop install) | Per-seat, annual |

Enterprise CAD: The Big Three

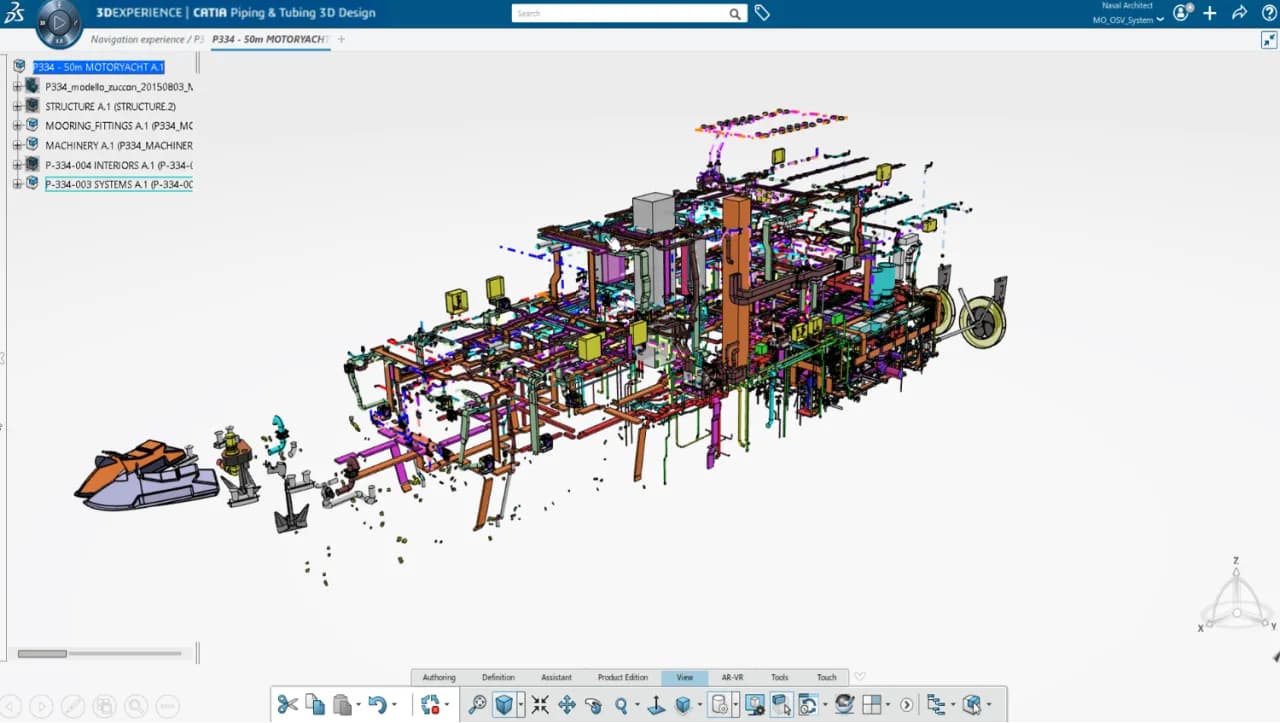

CATIA — Unmatched for Surface Design and Aerospace

CATIA is the oldest and most capable CAD platform for programs where geometric complexity is a first-class concern. Class-A surface design (the mathematically smooth surfaces required for automotive exterior body panels and aerospace aerodynamic structures), complex assembly management at 100,000+ part counts, and kinematic simulation are where CATIA has no equals in the professional market.

What makes CATIA irreplaceable:

• Class-A surfacing (GSD — Generative Shape Design): The mathematical continuity requirements for automotive exterior surfaces (G0, G1, G2, G3 continuity across panel boundaries) are defined in CATIA and verified in CATIA. No other professional tool reaches this level of surface quality control at scale.

• Aircraft structural design: CATIA's ELFINI structural analysis and SAMTECH simulation integration are production-proven for aerospace structural analysis at programs where FEM certification is required.

• Part family and catalog management: CATIA's Knowledge Advisor and PowerCopy features make it the tool for programs with high part-family complexity — automotive option variants, configurable assemblies.

Where CATIA struggles: CATIA's complexity is proportional to its capability — it is not the right tool for general mechanical engineering where a parametric solid modeler and decent FEA are sufficient. Learning curve is steep. Licensing is expensive (CATIA licenses can run $15,000–$30,000 per seat per year for full capabilities).

Who uses it: Airbus (commercial aircraft), Bombardier, Dassault Aviation, Renault, Stellantis, Ferrari, BMW (body design), Boeing (select programs).

---

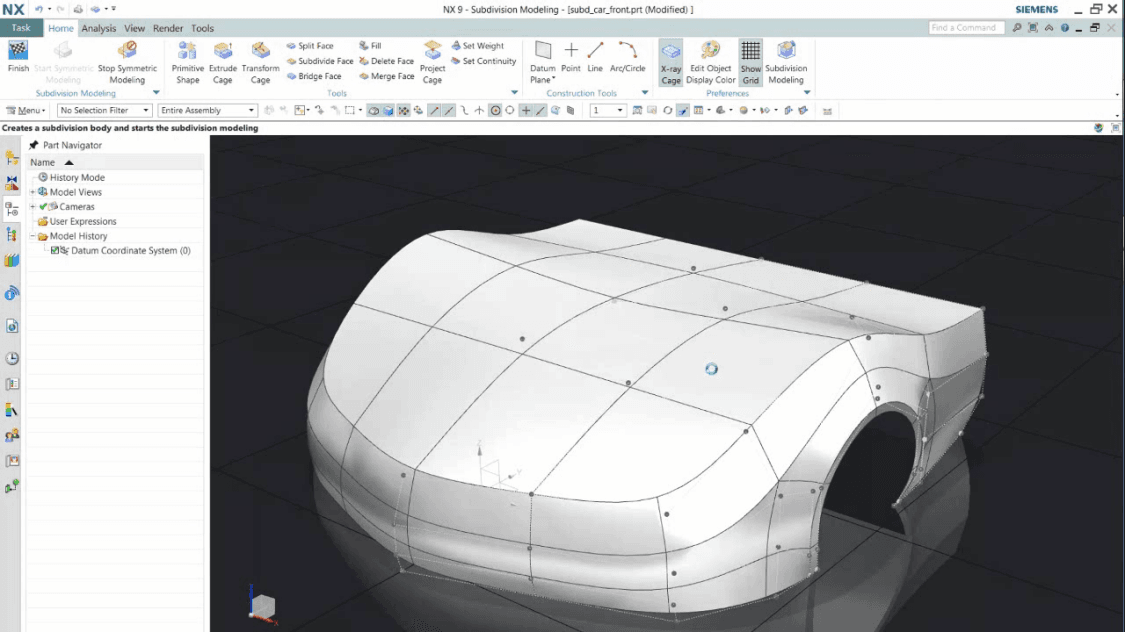

Siemens NX — Deepest CAD-CAM-PLM Integration

Siemens NX is the premier tool for programs where CAD, CAM (Computer-Aided Manufacturing), and simulation are tightly coupled. NX CAM is the most capable multi-axis CNC programming environment in the market; Simcenter NX provides FEA and thermal analysis directly on NX geometry without data translation; the native Teamcenter integration means that NX model data, revisions, and configurations are first-class PLM objects without format conversion.

What makes NX irreplaceable:

• NX CAM: Multi-axis machining programming, toolpath verification, and machine simulation in the same environment as CAD. For aerospace machined parts (titanium bulkheads, complex impellers), NX CAM is the standard.

• Simcenter NX: FEA directly on NX's parametric model — geometry changes in the model automatically propagate to the FEA mesh. This parametric FEA is NX's key advantage over simulation tools that require geometry export.

• Teamcenter integration: NX files are native Teamcenter objects. Check-in/check-out, revision management, and BOM relationships are managed through the NX interface with Teamcenter's data model — no translation, no intermediate format.

Where NX struggles: NX's surface design capabilities are good but not at CATIA's Class-A level. NX is expensive (comparable to CATIA). The learning curve is steep, and unlike SolidWorks, the training ecosystem is smaller and more specialized.

Who uses it: BMW Group, Volkswagen Group, General Motors, Ford, Boeing Commercial Airplanes, Airbus Defence & Space, GKN Aerospace, Spirit AeroSystems, Caterpillar.

---

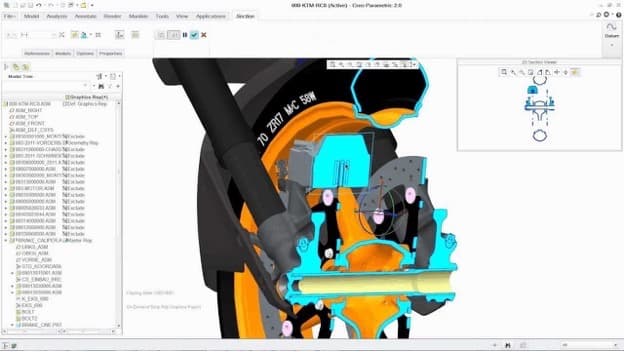

PTC Creo — The Parametric Standard for Mechanism Design

PTC Creo (formerly Pro/ENGINEER) is the parametric CAD platform for programs with complex mechanism design, tolerance stack-ups, and industrial equipment. Creo's parametric history is the oldest (Pro/ENGINEER was the first history-based parametric modeler, introduced in 1987), and its mechanism simulation (MDX — Mechanism Design Extension) and tolerance analysis (Tolerance Analysis Extension) are production-proven in heavy machinery.

What makes Creo irreplaceable:

• Mechanism design: Creo's kinematic simulation handles complex mechanical assemblies — gearboxes, linkage mechanisms, cam-follower systems — with contact detection and force/torque output. This is Creo's differentiation from SolidWorks, which covers similar mechanisms but with less simulation depth.

• Tolerance analysis: Creo's native tolerance stack-up analysis (3D tolerancing with ANSI Y14.5 and ISO standards) is required in precision manufacturing. Medical device manufacturers and automotive suppliers use it for functional tolerance validation.

• Windchill integration: Creo and Windchill are both PTC products with native integration — Creo's parametric data model maps directly to Windchill's PDMLink data model. For Windchill PLM customers, Creo is the natural CAD choice.

Where Creo struggles: Creo's surface design capabilities (ISDX — Interactive Surface Design Extension) are good but below CATIA's Class-A level. SolidWorks' training ecosystem is larger, making staffing easier. Cloud deployment is less mature than Onshape or Fusion 360.

Who uses it: Parker Hannifin, GE Aviation (some programs), Lockheed Martin, John Deere, Harley-Davidson, medical device manufacturers in the Windchill ecosystem.

---

Midmarket CAD: Where Volume Is

SolidWorks — The Engineer's Tool of Record

SolidWorks is the most widely deployed professional CAD tool globally. It is not the most capable — CATIA, NX, and Creo each exceed SolidWorks in specific domains. But SolidWorks' combination of ease of use, training ecosystem (8,000+ certified partners, every engineering school teaches it), and sufficient capability for general mechanical engineering gives it dominant market share in the 1–200 seat segment.

Best fit: General mechanical engineering, consumer products, industrial equipment in the SMB segment, any program where engineering talent is the constraint and the tool must be learnable in weeks.

Notable: Dassault Systèmes owns both CATIA and SolidWorks. SolidWorks is being migrated to the 3DEXPERIENCE cloud (3DEXPERIENCE SolidWorks provides cloud collaboration via 3DSpace), but most SolidWorks users remain on the desktop version with SolidWorks PDM Standard or Professional as the vault.

Pricing: $4,000–$8,000 per seat per year for SolidWorks Premium (with simulation). Lower tiers available.

---

Autodesk Inventor — Factory and Plant Design Integration

Autodesk Inventor is Autodesk's parametric mechanical CAD tool, primarily used in the Autodesk Product Design & Manufacturing Collection — which bundles Inventor with Revit (architectural), AutoCAD (2D), Navisworks (review), and Factory Design Utilities (plant layout).

Best fit: Programs where factory/plant layout, piping and instrumentation (P&ID), and mechanical design are integrated workflows — chemical plants, factory design, HVAC systems. Also used in general industrial equipment by organizations already in the Autodesk ecosystem.

Where it competes: Inventor's mechanical capabilities are comparable to SolidWorks for general mechanical engineering but below Creo for mechanism-heavy programs. Autodesk Vault provides basic PDM; for full PLM, Autodesk customers use third-party systems.

---

Fusion 360 — Integrated Design, CAM, and Simulation

Fusion 360 is Autodesk's cloud-connected design-to-manufacturing platform that integrates CAD, CAM, simulation, and generative design in a single environment. It is not the most capable CAD tool in any single domain, but the integration of all four capabilities at $680/year per user makes it the most accessible professional design-through-manufacturing environment.

Best fit: Product development teams, hardware startups, and CNC machinists who need CAD + CAM integration without NX's cost. Generative design (topology optimization for additive manufacturing) is Fusion's unique differentiator — no other mainstream CAD tool has as mature a generative design workflow.

Where it struggles: Fusion 360 is not the right tool for aerospace structural design (no CATIA-grade surfacing), complex assembly management at 1,000+ parts (performance degrades), or programs requiring PLM integration (Fusion's PLM connectivity is limited).

---

Onshape — The Cloud-Native Alternative

Onshape is the only fully cloud-native professional CAD platform. There is no desktop installation — it runs entirely in the browser. Onshape's CAD functionality is comparable to SolidWorks for most general mechanical engineering workflows, and its cloud architecture provides unique collaboration capabilities: real-time multi-user editing (like Google Docs for CAD), instant version history, and zero file server management.

Best fit: Distributed engineering teams, companies that cannot manage CAD file servers, organizations where IT infrastructure management is a constraint, hardware startups that need professional CAD without license administration overhead.

The PLM question: Onshape was acquired by PTC in 2019. Onshape integrates with Arena (PTC's cloud PLM) for a fully cloud-based design-through-PLM workflow. For organizations wanting cloud CAD + cloud PLM without any on-premise infrastructure, the Onshape + Arena combination is the only native end-to-end option.

---

The CAD–PLM Selection Constraint

CAD and PLM (Product Lifecycle Management) selection are coupled decisions. The native integration between a CAD tool and a PLM system is always deeper than a connector-mediated integration:

| CAD Tool | Native PLM Integration | |---|---| | CATIA | 3DEXPERIENCE / ENOVIA (Dassault) | | Siemens NX | Teamcenter (Siemens DISW) | | PTC Creo | Windchill (PTC) | | SolidWorks | 3DEXPERIENCE SolidWorks, SolidWorks PDM | | Onshape | Arena (PTC) | | Fusion 360 | Autodesk Vault, limited PLM integration |

If your PLM selection drives your CAD selection (which happens in supply chains where OEMs dictate CAD format to suppliers), the table above shows which CAD tool is native to each PLM.

The Supply Chain Reality

Supply chains constrain CAD choice regardless of what the selection framework says. If your largest customer runs NX and requires design data in JT format with Teamcenter metadata, you are running NX. If you are an Airbus tier-1 supplier, you are running CATIA. The format exchange standards (STEP AP242, JT, 3D PDF) reduce but do not eliminate the dependency on the native format.

Before finalizing CAD selection, answer: What CAD format does my largest customer or supply chain require, and what format do my key suppliers deliver in?
