CAD Modeling Paradigms Explained: NURBS, Parametric, and Implicit/SDF

Every CAD tool you use is built on one of three fundamentally different mathematical bets about what geometry is. The bet your vendor made in the 1980s or 1990s still shapes what your engineers can build today — and what they cannot.

This article unpacks the three paradigms: NURBS-based surface modeling (Rhino, Plasticity), parametric feature-based MCAD (SolidWorks, Fusion 360, CATIA, Creo), and implicit/SDF modeling (nTop, Cognitive Design Systems). Understanding the mathematical foundations, workflow mental models, and industry sweet spots of each is becoming a core competency for PLM strategists, engineering leaders, and product design teams evaluating tool selection or integration strategy in 2026.

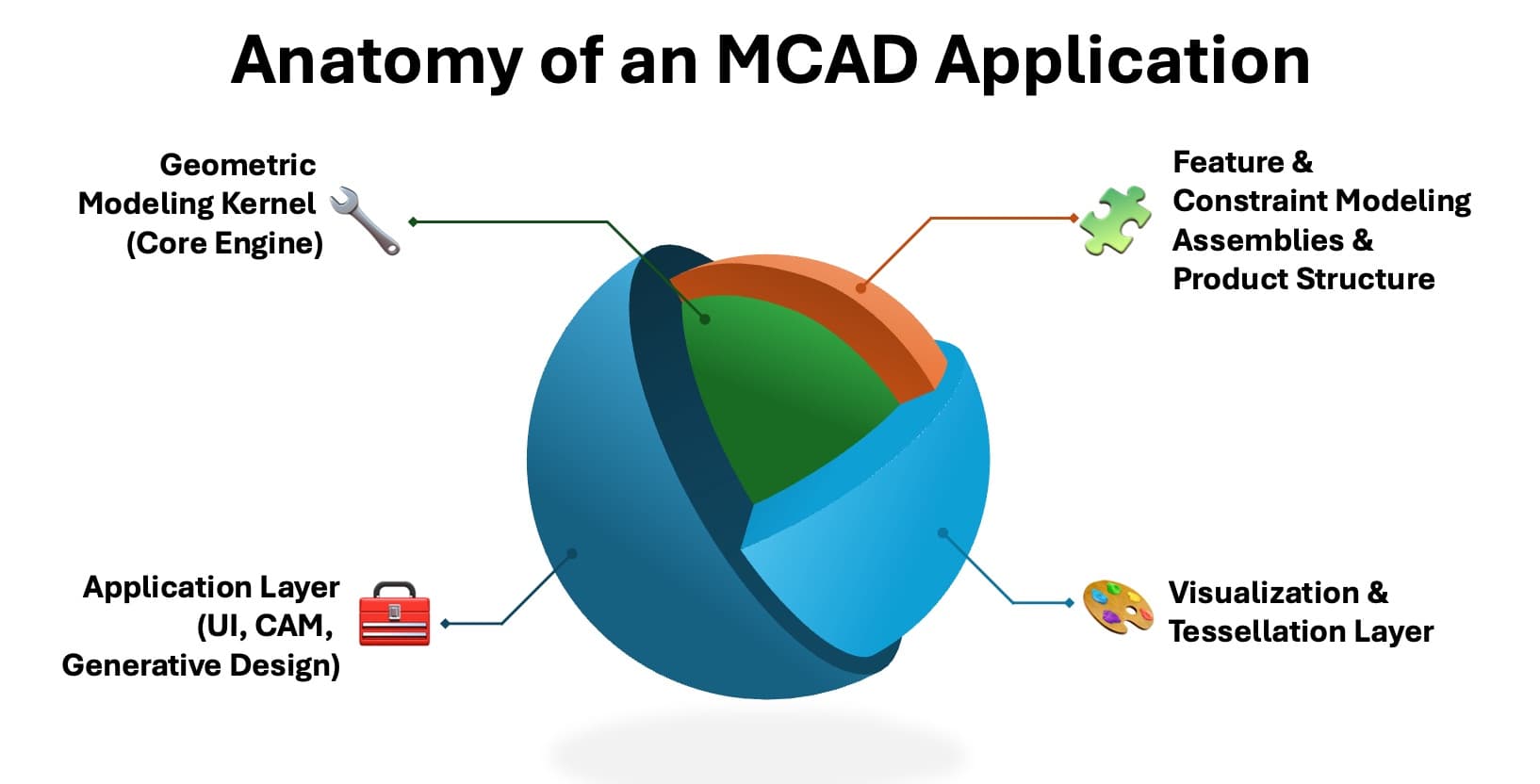

For context on why the kernels underneath these tools matter strategically, see our geometry kernel overview and the Kernel Wars series.

---

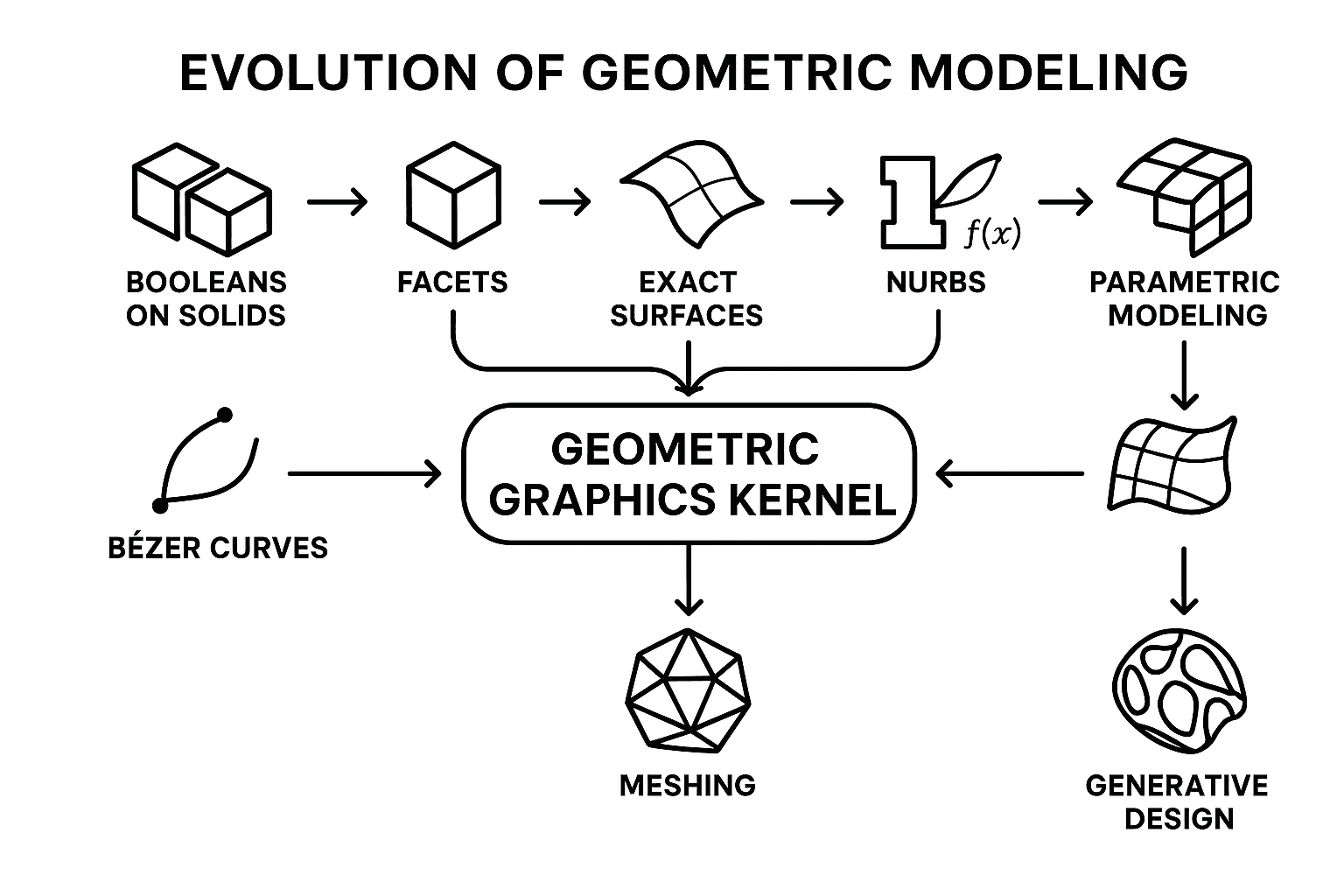

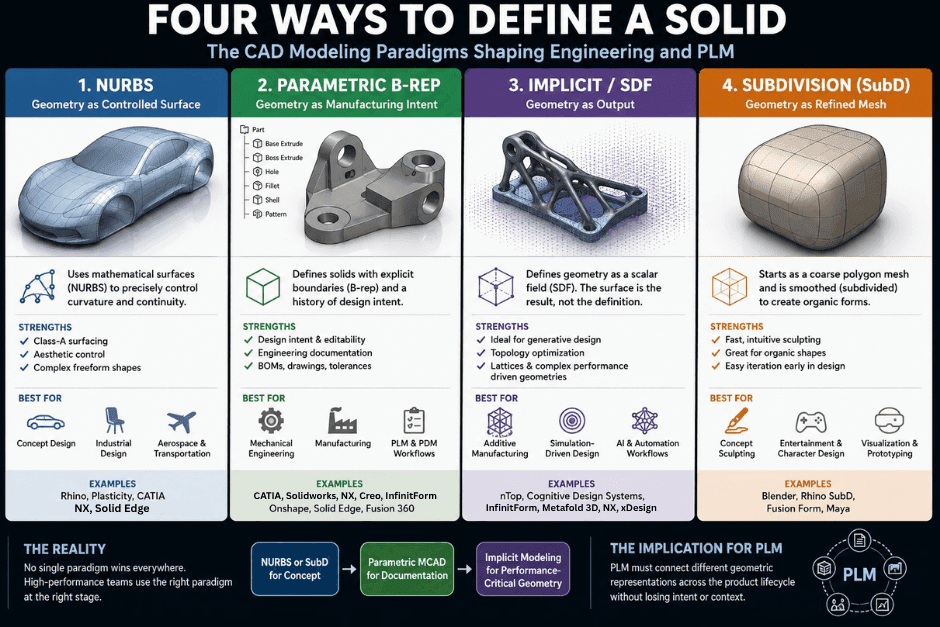

The Mathematical Core: Three Different Answers to "What is a Solid?"

1. NURBS: Geometry as Controlled Surface

Non-Uniform Rational B-Splines are the dominant mathematical representation for surface-oriented CAD. A NURBS entity is defined by four components: degree, control points, a knot vector, and an evaluation rule.

The degree is a positive integer (typically 1, 2, 3, or 5) representing the polynomial order. Cubic (degree-3) curves are the standard for free-form design. Control points are weighted positions whose manipulation directly reshapes the geometry. The key property of B-spline basis functions is local support: moving a control point affects only the d+1 adjacent spans — not the entire curve. This is what makes precision surface editing possible without unintended global distortion.

The knot vector is a non-decreasing sequence of (degree + N − 1) parameter values that partition the parameter space into spans. A full-multiplicity knot of degree d introduces a C⁰ discontinuity (a sharp kink); simple interior knots preserve C^(d−1) continuity. The "Non-Uniform" qualifier means knot spacing need not be uniform — enabling multi-knot clusters and exact Bézier curve representation. The "Rational" qualifier allows weighted control points, which is what makes NURBS capable of representing exact conics (circles, ellipses, parabolas) — something non-rational splines can only approximate.

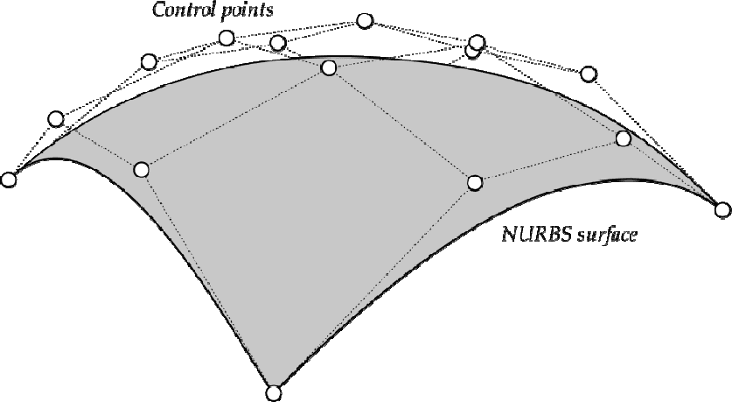

NURBS surfaces extend the curve definition to a bivariate grid of control points in u and v directions, producing smooth surfaces of arbitrary complexity.

A NURBS solid model (like those produced by Rhino or Plasticity) is therefore a boundary representation (B-rep) composed of trimmed NURBS surface patches joined by topological edges and vertices — sometimes called a polysurface or shell. The Plasticity Studio licence includes the variational xNURBS surfacing engine — normally a $400 add-on to Rhino and SolidWorks — which enables high-quality surface generation from boundary and interior constraints.

2. Feature-Parametric B-Rep: Geometry as Manufacturing Intent

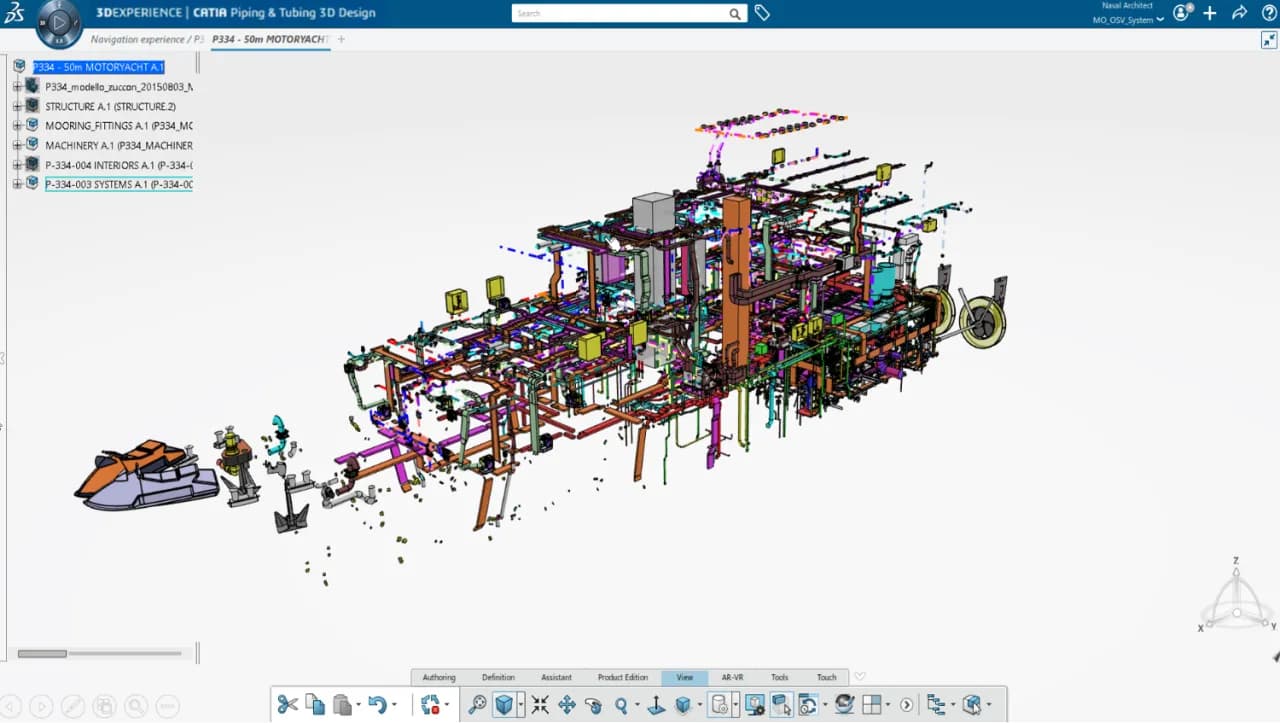

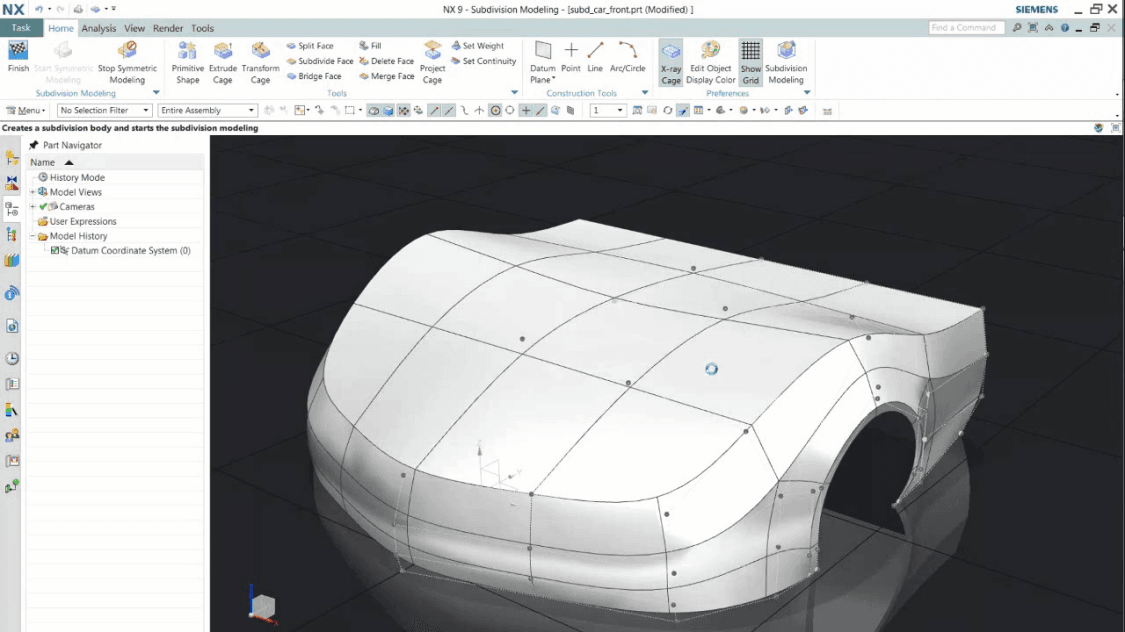

Mainstream mechanical CAD systems — SolidWorks, Fusion 360, CATIA, Creo — adopt a feature-based, history-driven parametric solid modeling paradigm. At the kernel level these tools also produce B-rep solids, typically built on Parasolid (SolidWorks, NX, Solid Edge, Plasticity) or ACIS/ShapeManager (older SolidWorks versions, Autodesk products).

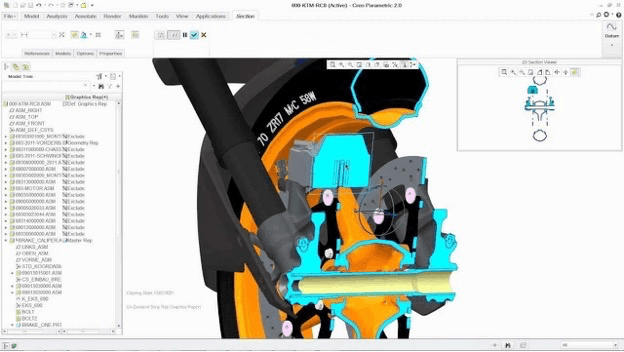

What differentiates MCAD from pure NURBS modelers is the feature tree: a sequential log of parametric operations — sketches, extrusions, fillets, patterns, Boolean cuts — stored as editable, ordered steps. "Dimensions drive geometry and features reference each other; change a dimension and dependent geometry updates automatically." This design intent capture enables downstream re-use: an engineer can change a wall thickness, fillet radius, or hole pattern and the entire feature tree replays.

The cost is rebuild fragility: late-stage topological changes can break downstream feature references ("dangling relations"), and complex assembly models with thousands of features can take minutes to rebuild.

The Dassault Systèmes parametric modeling guide defines the canonical workflow explicitly: Create units and part names → Create initial 2D sketch → Apply/modify parameters and constraints → Create detailed 3D model → Add features → Analyze via simulation → Generate 2D and 3D drawings. SolidWorks 2025 introduced over 200 user-driven enhancements including AI-assisted command prediction, interference detection in Large Design Review, and improved PDM check-in performance.

The mental model is that of an engineer documenting manufacturing intent: every dimension is meaningful, every feature has a clear fabrication-step analog. This audit trail is what PDM and PLM systems version-control, and what regulatory agencies expect for Design History File (DHF) integrity in medical and aerospace applications.

3. Implicit Modeling / Signed Distance Fields: Geometry as Output

Implicit modeling represents geometry not as an enumerated boundary but as a scalar field defined over all of 3D space. The canonical form is a signed distance function (SDF): a mathematical function F(x, y, z) that returns the shortest Euclidean distance from any point to the nearest surface — negative inside the solid, positive outside, zero on the boundary surface.

Boolean operations on SDFs reduce to elementary min/max operations:

• Union: F₁, F₂ → min(F₁, F₂)
• Intersection: max(F₁, F₂)
• Difference: max(F₁, −F₂)

This mathematical guarantee means operations that frequently fail in B-rep — complex Boolean intersections, offsets on organic geometry, lattice generation — are trivially robust in SDF. Offsetting an SDF solid is as simple as raising the iso-level.

The theoretical foundation of functional representation (FRep) was established independently by Rvachev and Ricci, and formalized in the survey "Function-based shape modeling: mathematical framework and specialized language" (Pasko et al., MIT CSAIL). Modern implicit platforms extend beyond pure distance fields to arbitrary scalar fields — density, temperature, stress — that can drive geometry directly, enabling what nTop calls field-driven design: "your data goes in; optimized designs come out."

nTop (formerly nTopology), the leading commercial implicit modeler, formalizes this: "implicit modeling is a unique and lightweight way of representing three-dimensional objects using a single mathematical function to describe a solid body." Their B-rep vs. implicits explainer captures the key distinction: B-rep "only defines information on the circle itself; information about every other point in space is an extra calculation" — whereas "every point in space knows exactly how far it is from the nominal surface" in a distance field.

Cognitive Design Systems (CDS) extends the SDF approach with manufacturing analysis solvers for die casting, molding, machining, additive manufacturing, and forging — enabling what CDS calls Manufacturing-Driven Design (MDD): the platform simultaneously optimizes geometry for performance and manufacturing constraints from the first computation.

---

Workflow Paradigms: How Designers Think in Each System

NURBS: Sculpt, Trim, Join

NURBS modelers operate on a direct modeling mental model — there is no parametric history tree. The designer works with curves, surfaces, and solids as first-class entities, manipulating control points and surface continuity (G0/G1/G2/G3) to achieve the desired form.

The mental model is analogous to digital clay or industrial design sketching: the designer thinks in terms of surface flow, curvature continuity, highlight lines, and aesthetic proportions. Tools like zebra stripe analysis (curvature continuity check) and curvature analysis maps are central to quality verification.

In Rhino, the Grasshopper visual programming environment (included since Rhino 6) adds algorithmic and parametric capabilities — enabling designers to build generative systems and drive NURBS geometry with data. Plasticity combines the Parasolid NURBS kernel with a workflow borrowed from polygonal modelers like Blender, optimized for industrial designers transitioning from game art or consumer product design.

Representative workflow: "For efficient NURBS models you break down the shape into a number of base shapes that are trimmed and rounded off... the further along things get the harder changes become, so I try to get feedback early and often." — McNeel Forum

Parametric MCAD: Sketch, Feature, Assemble, Document

SolidWorks and Fusion 360 embody a bottom-up feature-based parametric paradigm: create 2D sketch → apply feature → accumulate history → assemble → document. The SolidWorks PDM (EPDM) and 3DEXPERIENCE platform extend this with vault-based version control, BOM management, ECO workflows, and ERP integrations. Fusion 360 adds cloud-native PDM with real-time co-editing and Fusion Manage for integrated PLM.

The professional consensus: SolidWorks outperforms in nearly every production workflow area — sheet metal, surfacing, assemblies, sketching — thanks to almost three decades of continuous improvement. Fusion benefits from being cloud-based and advantageous for multi-user setups; SolidWorks is preferred for structural steel, piping, or production-level workflows. Autodesk's own comparison notes that "Fusion makes it easier to explore, modify, and refine designs without fighting feature trees or rebuilding models."

Implicit/Field-Driven: Define, Optimize, Generate

Implicit modelers replace the sequential feature tree with a node-based, non-linear computational graph. The designer thinks in terms of functions and fields: what scalar values should govern geometry at every point in space?

The workflow typically proceeds: (1) import B-rep/mesh geometry or define a design space; (2) assign scalar fields (stress, thermal, density, distance) from simulation or manufacturing analysis; (3) define implicit geometry operations (lattice generation, shell infill, topology optimization, offset); (4) couple field values to geometric parameters; (5) export to manufacturing — directly as slice data for AM, simplified B-rep for CAD documentation, or mesh for FEA validation.

The mental model is that of a systems engineer working with physics and data: geometry is an output of optimization, not an input. nTop's computational design era article frames the paradigm shift historically: from the Drafting Era (static geometry), through the Parametric Era (Pro/ENGINEER's replay capability, 1988 onward), to the Computational Design Era (physics-driven, automated geometry generation).

---

Industry Use Cases: Where Each Paradigm Wins

The nine verticals below map each paradigm to its primary value zone — where it delivers the highest professional productivity, quality, and business return.

---

The Structured Comparison: Seven Dimensions Across Six Tools

The following matrix uses a qualitative scale: ★★★★★ = industry-leading/native strength; ★★★★ = strong/standard capability; ★★★ = adequate with effort; ★★ = limited/workaround required; ★ = not designed for this use case.

Key insight: No single tool spans all seven dimensions optimally. The dominant pattern in high-performance product teams is a three-layer stack: NURBS for concept visualization → parametric MCAD for engineering documentation → implicit modeling for performance-critical geometry generation and AM production.

---

The Paradigm Transition: Three Eras and What Comes Next

NURBS modeling, pioneered commercially in Rhino (1998) and earlier in CATIA and Pro/ENGINEER surfaces, was revolutionary in enabling the precise digital representation of complex free-form surfaces for automotive clay digitization, yacht hull design, industrial product design, and architectural form-finding. The paradigm is artist-centric: the designer directly manipulates geometry, guided by aesthetic judgment, continuity analysis, and material-aware surface thinking. Skilled NURBS modelers command premium salaries because the craft of controlling surface quality at G2/G3 continuity across complex patches is genuinely difficult and high-value.

nTop frames CAD evolution across three eras:

1. The Drafting Era — static, 2D-equivalent geometry; no parametric history; geometry is a drawing artifact.

2. The Parametric Era — Pro/ENGINEER's 1988 replay capability; "change a few numbers and wait for the model to rebuild, typically taking several minutes to hours." Design intent captured in feature tree. The era most engineering organizations currently operate in for documentation.

3. The Computational Design Era — geometry is an output of data, physics, and algorithms rather than a manually constructed artifact. nTop calls this "engineering at the speed of light."

Three Forces Accelerating the Transition to Implicit

Additive manufacturing complexity. Metal AM parts with lattice infill, TPMS structures, graded porosity, and conformal cooling channels cannot be feasibly designed in B-rep or NURBS. "B-rep and mesh modelers cannot handle the complexity of 3D printed models, manually or in automated workflows, let alone describe parts with varying material properties." The SDF's inherent volumetric nature maps naturally to the voxel-level AM process.

Simulation-driven design pressure. Performance-driven industries (aerospace, defense, medical) require geometry to be functionally justified by simulation evidence. The traditional workflow (design in CAD → mesh → simulate → manually redesign) is too slow. Implicit modeling closes the loop: simulation fields directly drive geometry parameters, enabling near-real-time physics-in-the-loop iteration. The CAD/finite-elements/NURBS isogeometric analysis paper (Hughes et al., published in Computer Methods in Applied Mechanics) recognized this CAD-to-mesh translation gap as early as 2005, proposing NURBS-based isogeometric analysis to eliminate the conversion step — a problem that SDF-native tools solve more completely by keeping geometry and simulation in the same mathematical space.

Automation and AI integration. Traditional B-rep models are fragile to automated modification — rebuild failures block automated design pipelines. Implicit models, defined by equations, are inherently automation-friendly. "AI engineering will drive mainstream use of implicit modeling, as these models can be trained faster and more accurately with implicit models than with traditional CAD models."

Complementary Coexistence, Not Replacement

The Altair assessment captures industry consensus: "Implicit modeling isn't positioned to replace traditional CAD because each approach excels at different parts of the design process. Traditional CAD remains unmatched for creating precise, dimension-driven components, defining manufacturing features, and producing drawings that align with established engineering workflows. Implicit modeling shines when handling complex, organic geometry and rapid iteration."

In practice, leading engineering organizations are developing hybrid workflows: functional zones requiring tight tolerances and drawing documentation remain in B-rep/parametric CAD (SolidWorks or CATIA), while performance-critical geometry (organic transitions, lattice fills, optimized load paths) is generated in nTop and exported as simplified B-rep for CAD integration or directly as manufacturing-ready geometry. Cognitive Design Systems addresses the remaining gap by automating the conversion of implicit/mesh optimization results back to "watertight geometries" for CAD import — recognizing that "99% of the time" industry still needs geometry in a conventional CAD format.

For concept visualization specifically, NURBS remains unchallenged: the designer's eye and hand still guide aesthetic decisions that no optimization algorithm can replace. The shift is that the NURBS concept model increasingly becomes a starting envelope — a set of preserved geometric interfaces and design space constraints that feed downstream implicit optimization, rather than the final deliverable. This represents the completion of the transition from geometry-as-craft to geometry-as-output.

---

Buyer Profiles: Distinct Business Value by Tool

Understanding which tool is right for your organization requires matching the tool's core strength to your specific workflow, team profile, and budget constraints.

Rhinoceros 3D (Rhino 8)

Vendor: Robert McNeel & Associates | Pricing: approx. $1,195 perpetual; approx. $595/yr subscription | Kernel: OpenNURBS (proprietary McNeel)

Best for:

• Industrial designers developing concept surfaces and Class-A geometry
• Architects and computational designers using Grasshopper for parametric/generative workflows
• Jewelry designers, yacht hull designers, and footwear engineers
• Any workflow requiring high-quality NURBS surface continuity analysis
• Teams bridging between artistic concept and engineering documentation

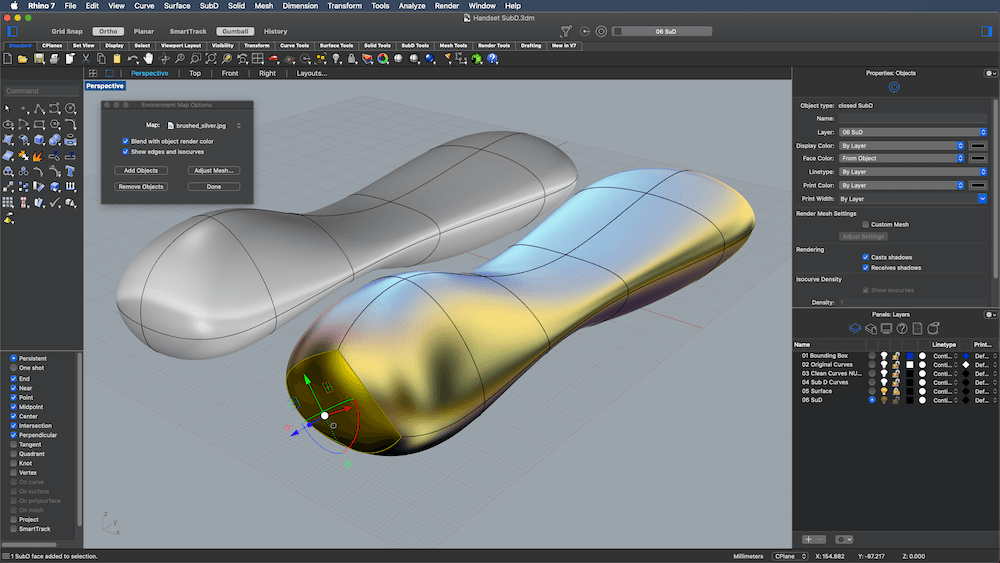

Distinct business value: Rhino occupies the undisputed leadership position for professional NURBS surface modeling at accessible price points. Its Grasshopper visual programming environment transforms Rhino into a full computational design platform — connecting NURBS geometry to structural analysis plugins (Karamba3D), evolutionary optimization (Galapagos), and direct API integration with fabrication machinery. Rhino 8 adds ShrinkWrap (clean surface wrapping from scan data), SubD Creases, and improved Mac performance, extending its reach into reverse engineering and product development from physical prototypes.

Key limitations: No parametric history tree limits late-stage engineering changes. No native BOM, drawing standard compliance, or PDM. Not suitable as the primary tool for certified engineering documentation.

---

Plasticity

Vendor: Nick Kallen (independent) | Pricing: $149 Indie / $299 Studio — perpetual, no subscription | Kernel: Parasolid (Siemens)

Best for:

• Game artists and product designers transitioning from polygonal modeling (Blender/HardOps)
• Concept designers who need NURBS-quality geometry without CAD learning overhead
• Independent designers and small studios on budget-conscious workflows
• Prototyping hard-surface geometry for consumer electronics, vehicles, and furniture
• Teams that need STEP/Parasolid output for downstream engineering without full CAD subscription costs

Distinct business value: Plasticity delivers enterprise-grade Parasolid kernel geometry — the same mathematical foundation as SolidWorks and NX — at a $299 perpetual price point with no subscription. Its direct-modeling workflow, borrowed from polygonal tools, dramatically lowers the learning curve for artists moving toward engineering-grade surface quality. The inclusion of xNURBS (normally a $400 Rhino add-on) in the Studio tier adds variational surfacing capability that rivals Class-A surface tools.

Key limitations: No parametric history, no simulation, no PDM, no BOM. Not suitable for large assemblies or regulated engineering environments. Limited to direct editing only — no algorithmic or scripted workflows. Company is one-person independent development.

---

SOLIDWORKS

Vendor: Dassault Systèmes | Pricing: $4,000+ USD + annual maintenance; PDM/PLM add-ons extra | Kernel: Parasolid (licensed from Siemens)

Best for:

• Mechanical engineers in regulated industries requiring certified simulation and drawing documentation
• Large assembly design with complex mating constraints and configuration management
• Teams requiring full PLM integration: SolidWorks PDM / 3DEXPERIENCE ENOVIA with ECO, BOM, ERP links
• Sheet metal, weldment, and piping design with fabrication-specific tools
• Aerospace, automotive (Tier 2+), medical device, and industrial equipment OEMs

Distinct business value: SolidWorks holds the broadest installed base of any mechanical CAD system globally, with nearly three decades of continuous development. Its parametric history-based modeling, combined with the SolidWorks PDM and 3DEXPERIENCE ecosystem, makes it the de facto standard for teams that need to manage certified design history, regulatory documentation, and multi-site collaboration. The 3DEXPERIENCE platform extends SolidWorks into ENOVIA for lifecycle management, DELMIA for manufacturing simulation, and SIMULIA for advanced physics — used at Boeing and Airbus for production-scale programs.

Key limitations: High cost; Windows-only desktop architecture; 3DEXPERIENCE cloud integration reported as unstable by a significant portion of enterprise users. Feature tree rebuild times and fragility at high part complexity are persistent pain points. Weak at free-form surface modeling compared to Rhino; complex NURBS surfaces require SolidWorks Surfacing, which is noticeably less capable.

---

Autodesk Fusion 360 / Fusion

Vendor: Autodesk | Pricing: $545/yr (professional); free for personal/startup use | Kernel: ASM ShapeManager (Autodesk proprietary, derived from ACIS)

Best for:

• Startups and SMEs needing an integrated CAD/CAM/CAE/PDM platform without per-module add-on costs
• Designers and engineers who need cross-platform access (macOS + Windows)
• Teams requiring tight CAD-to-CNC toolpath integration in one environment
• Generative design exploration for lightweighting consumer and industrial products

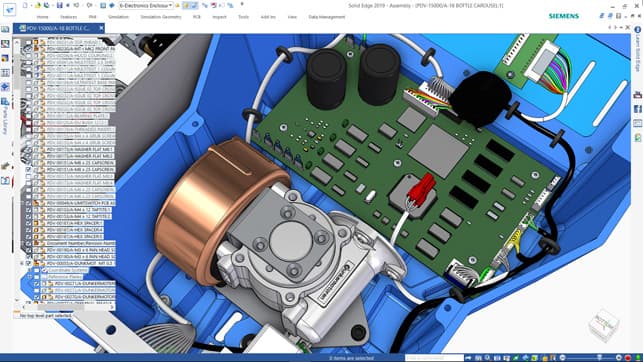

• Electronics-MCAD integrated workflows (PCB + mechanical enclosure co-design)

Distinct business value: Fusion 360 is the most integrated single-platform product in this comparison: CAD, CAM, CAE, PCB, PDM, and PLM in one subscription. Its cloud-native architecture enables real-time co-editing, version management without separate PDM infrastructure, and access from any device. The integrated generative design workspace (cloud-compute), simulation (structural, thermal, modal), and Fusion Manage (PLM) make it the highest-value platform per dollar for teams of 2–50. In 2024, Autodesk added BOM management, machine simulation collision detection, and advanced multi-axis CAM strategies.

Key limitations: Struggles with very large assemblies (300+ parts) compared to SolidWorks. Requires reliable internet connectivity. Less mature for production-scale enterprise PDM workflows, sheet metal documentation, and weldments. CAD kernel less mature than Parasolid for complex surface operations. Generative design output requires significant post-processing to become parametric engineering geometry.

---

nTop (formerly nTopology)

Vendor: nTop Inc. | Pricing: Enterprise licensing (approx. $15,000–$30,000+/yr; contact for quote) | Kernel: Proprietary implicit modeling engine (SDF-based)

Best for:

• Aerospace and defense engineers designing lattice-filled, topology-optimized AM components
• Medical device engineers designing osseointegrative orthopedic implants
• Teams with automated, reusable design workflows across product families
• Heat exchanger and thermal management design with TPMS structures
• Any workflow where B-rep failures block automated AM production pipelines

Distinct business value: nTop pioneered implicit modeling for commercial engineering applications and remains the most mature platform in this category. Its core promise — "the math behind implicit modeling guarantees that operations like booleans, offsets, rounds, and drafts never fail" — directly addresses the #1 pain point of complex AM geometry development. The field-driven design approach closes the simulation-to-geometry loop: stress fields, thermal maps, and density distributions become direct inputs to geometry parameters without manual interpretation. The blueflite case study (25% mass reduction in 4 hours vs. 4 weeks) quantifies the ROI at the highest level of engineering performance.

Key limitations: High price point limits adoption to enterprise and well-funded scale-ups. Steep learning curve for engineers accustomed to feature-based CAD. Not a replacement for parametric MCAD — no native 2D drawings, BOM, or engineering documentation. Implicit geometry must be converted to B-rep or mesh for downstream CAD/PLM integration.

---

Cognitive Design Systems (CDS)

Vendor: Cognitive Design Systems | Pricing: Enterprise pricing; contact for quote | Kernel: Proprietary implicit (SDF-based) hybrid with mesh and CAD operators

Best for:

• Aerospace, defense, automotive, and space engineers in the concept-to-manufacturing transition
• Teams requiring manufacturable designs from the earliest design phase (DfM-first philosophy)
• Organizations with regulated manufacturing processes needing automated feasibility checks
• High-value part families (brackets, gearbox housings, structural nodes) where weight and cost optimization are primary KPIs
• Engineering organizations targeting 7–10× reduction in design cycle time

Distinct business value: CDS differentiates from nTop through its explicit Manufacturing-Driven Design (MDD) philosophy: rather than optimizing geometry in a manufacturing-agnostic way and then checking feasibility, CDS simultaneously optimizes for performance AND manufacturing constraints from the first computation. Their platform supports five manufacturing processes (molding, machining, casting, AM, forging) with automated DfM correction. Quantified claims include: 50× faster design generation, 7× faster product engineering cycle, concept phase reduced from 24–38 weeks to 4–6 weeks, 30–45% weight reduction, and 40–60% fewer prototype iterations. The CDFAM 2024 presentation documents a 91% reduction in new product development time in automotive/aerospace applications and 15–30% weight reduction in complex machined components.

Key limitations: Most specialized of the six tools; narrower applicability outside performance-critical mechanical parts. Smaller ecosystem and vendor maturity compared to nTop, SolidWorks, or Autodesk. Output still requires conversion to CAD formats for final documentation and PLM integration. Less suitable for pure concept visualization or artistic design exploration.

---

PLM Implications: What This Means for Your Architecture

For PLM practitioners and engineering IT leaders, the three-paradigm landscape creates specific integration challenges:

Data translation overhead. Implicit geometry must be converted to B-rep or mesh for PLM item attachment, BOM management, and drawing generation. nTop's CodeReps protocol is an attempt to create a better geometry communication standard — one that carries implicit model intent rather than just the converted B-rep shell.

Version control mismatch. Parametric MCAD feature trees are version-controllable at the feature level. Implicit computational graphs are versioned differently — as node graphs with field assignments. Most PLM systems are designed around B-rep geometry and feature trees; integrating implicit model outputs requires adapter workflows.

Downstream validation. Regulated industries (medical devices, aerospace, defense) require Design History File integrity. Implicit-generated geometry currently requires conversion to B-rep before it can be attached to a DHF-compliant document package. This is the primary bottleneck to broader implicit adoption in regulated manufacturing.

Tool selection by workflow phase. The strategic decision is not "which modeler should we standardize on?" but "which modeler is correct for each phase of the design workflow?" The answer increasingly points to a deliberate multi-tool stack with defined handoff protocols at each phase transition — a capability that mature PLM organizations need to encode in their process governance.

For deeper context on the kernel infrastructure underneath these tools, see our Kernel Wars series and What is a Geometric Kernel?. The CAD, CAM, and CAE in PLM article covers how these modeling paradigms connect to manufacturing and simulation in the broader PLM lifecycle.

---

This article synthesizes research from vendor documentation, academic publications, and engineering industry references. Key sources include: McNeel & Associates NURBS documentation; nTop implicit modeling whitepapers; Dassault Systèmes and PTC parametric modeling resources; Altair and MERL technical references on implicit geometry; and CDFAM 2024 symposium materials on Cognitive Design Systems.
