What is PLM Integration?

PLM integration is the work of connecting the product record to everything that authors it, consumes it or changes it. The product lifecycle management system holds the authoritative definition of the product: the engineering BOM, the released drawings and models, the approved changes, the configuration baselines. That definition is useless sitting in a vault. It has to arrive in ERP as a manufacturing BOM with costs, in MES as a routing the shop floor can execute, at suppliers as the current revision, and it has to receive back what was actually built and what went wrong.

Here is the thing most PLM selection projects miss: the PLM system is the smaller half of the decision. An isolated PLM is an expensive file server. What makes it a digital thread is the set of connections around it, and those connections are where implementations succeed or quietly fail. I have watched a lot of "PLM failures" up close. Almost all of them were integration failures at one of six seams.

The six seams

Seam	What crosses it	Trigger	The classic failure
CAD to PLM	Models, drawings, extracted BOM structure, revision state	Save, check-in, release	Slow connector; engineers go back to shared drives
PLM to ERP	Released MBOM, item master, change effectivity	MBOM release	Parallel MBOM maintained in Excel
PLM to MES	Released routing and work instructions; as-built serials back	MBOM release; unit completion	MES executes one revision, ERP costs another
ALM to PLM	Software versions, requirements links, test evidence	Software release, ECO	Hardware and software records that cannot be reconciled for certification
QMS to PLM	Nonconformances, CAPA triggering engineering change	CAPA opened	Corrective action never becomes an ECO
PLM to supply chain	Approved vendor list, specifications, ECO notifications	Part release, ECO approval	Supplier builds to the old revision

Each seam has its own article on this site, and each deserves it. The short version of each follows.

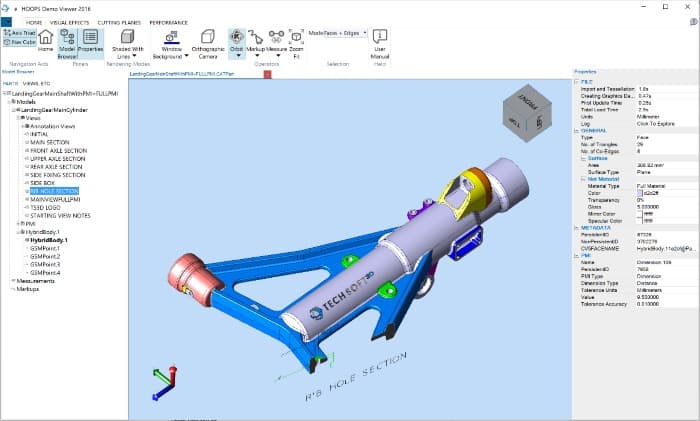

CAD to PLM is the most used connection and the one engineers judge the whole system by. The PLM-CAD integration piece makes the case that the connector has to be invisible during checkout, save and check-in, that automatic BOM extraction from assemblies is worth serious implementation effort because manual BOM maintenance is the largest source of EBOM error, and that PLM, not CAD, must own revision state. When this seam is slow or lossy, engineers vote with their feet.

PLM to ERP is where the EBOM becomes an MBOM and then purchase orders and work orders. PLM owns design intent; ERP owns procurement, cost and the financial transaction. The translation between them is process planning, and the eBOM-to-mBOM article explains why so many manufacturers still bridge that gap with a spreadsheet despite decades of PLM investment. Organizational fragmentation and data ownership, not technology.

PLM to MES is the release of the MBOM and routing to the system that executes it operation by operation, and the return path for the as-built record. The MES vs PLM article calls this the most architecturally significant seam in manufacturing IT, and I agree. Get it wrong and you get ghost revisions: MES building one version while ERP costs another and nobody can say which shipped in which unit.

ALM to PLM did not exist as a seam twenty years ago. Now most products contain software, and the ALM-PLM integration piece argues that for regulated products under ISO 26262 or IEC 62304 it is a safety requirement rather than an efficiency project. Software versions, requirement traceability and test evidence have to be part of the same product record as the hardware they run on.

QMS to PLM is the corrective action loop. A nonconformance in the quality system opens a CAPA; the CAPA has to become an engineering change in PLM and be formally linked to it for regulatory traceability. The QMS vs PLM article covers the boundary and the audit findings that follow when it is missing.

PLM to the supply chain is the seam most organizations leave for last and pay for first. The PLM and supply chain integration guide sequences it in four phases, starting with the approved vendor list inside PLM and ending with closed-loop ECO notification, so a supplier learns about a design change from the system rather than from a returned shipment. Its companion, PLM supplier integration, covers the portal side.

Integrate on events, not on everything

The single most useful design rule in PLM integration is to move data at release events. An EBOM release. An MBOM release. An approved ECO with its effectivity. A completed unit in MES. These are discrete, governed moments when the data is in a known state and someone has signed off on it.

The alternative, continuous bidirectional synchronization of everything, sounds modern and is a trap. It invites conflicts between systems that have no rule for who wins, and it moves half-finished work across boundaries where it does damage. The two places real-time genuinely matters are the CAD connector's save and checkout path, where latency is felt in every engineer's day, and shop-floor feedback, where an out-of-spec build should surface in minutes. Almost nothing else needs it.

Authority, not a single source of truth

Every integration project eventually runs into the slogan that PLM will be the single source of truth. It will not, and pretending otherwise is a governance error. The model that works assigns authority per data domain:

• PLM is authoritative for product structure, the engineering definition, approved configurations and the change record.
• ERP is authoritative for procurement, cost, inventory and the financial transaction.
• MES is authoritative for as-built records, work-in-progress and production actuals.
• QMS is authoritative for nonconformances, deviations and corrective actions.
• ALM is authoritative for software builds, tests and software requirements.

Integration is then a set of governed flows between authorities, with a rule for every conflict. The PLM data governance article develops this multi-system authority model, and the Ensuring Scalable Data Integration piece compares the mechanics: master data management for shared entities like parts and suppliers, API-led integration between systems, and an integration platform when the number of interfaces outgrows point-to-point.

Integration is not synchronization

Two systems that can exchange data are integrated. They are synchronized only when the data stays consistent over time, which requires that changes flow in a governed direction and that nothing gets edited outside the loop. Most organizations have the first and believe they have the second. The test is simple: pick a part, and ask CAD, PLM, ERP and MES what its current revision is. If you get more than one answer, you have integration without synchronization, and the reconciliation is being done by a person with a spreadsheet.

The architecture decision underneath

How many systems you integrate depends on a decision made before integration starts: best-of-breed tools or an integrated suite. Best-of-breed buys functional depth in each domain and pays for it with an integration mesh whose complexity grows faster than the number of systems. Integrated suites buy coherence and pay for it with lock-in and shallower specialist capability. The honest outcome in most organizations is a hybrid: an integrated PLM core, a small number of specialist tools connected through well-governed APIs, and a named team that owns the seams. Mid-market companies rarely have the capacity to sustain a full best-of-breed stack over five years, and the PLM vs ERP boundary alone consumes more integration effort than most of them plan for.

What failure looks like

The failure modes are consistent enough to list:

• Engineers abandoning PLM for a shared drive, because the CAD connector added seconds to every save.
• A parallel MBOM in Excel, because the EBOM-to-MBOM translation was never given an owner.
• Ghost revisions, where MES executes one version and ERP costs another.
• A supplier building to the previous revision because the ECO reached them by email, late, or not at all.
• A certification package that cannot reconcile the software version with the hardware baseline.
• A CAPA closed in the quality system that never produced an engineering change.

None of these is a tool failure. Each is a seam without governance. Which is the point of this page: when you evaluate PLM, evaluate the integrations and the people who will own them with at least the seriousness you give the vault.

Related Concepts

• PLM and CAD Integration, the most used seam and the one engineers judge PLM by
• EBOM vs MBOM and eBOM to mBOM translation, the PLM-to-ERP seam
• MES vs PLM, the release handoff and the as-built return path
• ALM and PLM Integration, software and hardware in one product record
• QMS vs PLM, the corrective action loop
• PLM and Supply Chain Integration, the four-phase guide
• Best-of-Breed vs Integrated Suites, the architecture decision underneath
• Ensuring Scalable Data Integration Across PLM, MES and ERP, MDM, API-led and platform patterns
• PLM Integration and Digital Thread in the glossary

Frequently Asked Questions

What are the most important PLM integrations?

Four carry most of the value. CAD to PLM, because it is the most used connection and the one engineers judge PLM by. PLM to ERP, because the engineering BOM has to become a manufacturing BOM and then purchase orders. PLM to MES, because the released MBOM is what the shop floor executes and the as-built record has to come back. And the supply chain, because suppliers have to build to the current revision. ALM and QMS integrations become mandatory in regulated, software-intensive products.

Why is PLM integration so hard?

Because PLM sits between systems that were designed by different vendors for different audiences with different data models and different ideas of what a part is. A part in CAD is geometry with a file name. In PLM it is a revision-controlled item with a lifecycle state. In ERP it is a material with a cost and a lead time. In MES it is a serialized thing with a lot number. Integration has to carry meaning across those boundaries, not just fields, and the organizational ownership of each boundary is usually undefined.

What is the difference between integration and synchronization?

Integration means two systems can exchange data. Synchronization means the data stays consistent over time. CAD and PLM are integrated when a model can be checked in. They are synchronized only when every save, revision and BOM change flows in one governed direction and nothing is edited outside the loop. Most organizations have integration and lack synchronization, which is how ghost revisions appear.

Should PLM integrations be point-to-point, middleware or a platform?

Point-to-point connectors are fine for two or three systems and the CAD connector should always be the vendor's native one. Beyond that, the number of interfaces grows faster than the number of systems, and an integration platform (iPaaS, ESB or a master data management layer for shared entities) becomes cheaper than maintaining the mesh. The Ensuring Scalable Data Integration article compares MDM, API-led and platform approaches in detail.

Does PLM integration have to be real-time?

Mostly no, and trying makes it fragile. The right trigger is the release event: an EBOM release, an MBOM release, an approved ECO. Those are discrete, governed moments at which data should move. Continuous bidirectional sync of everything invites conflicts between systems that have no rule for who wins. Real-time matters for the CAD connector's save and checkout path and for shop-floor feedback; almost nothing else needs it.

What governance does PLM integration need?

Four decisions, written down and enforced. Which system is authoritative for each data domain. Which events trigger data movement and in which direction. How conflicts are resolved when two systems disagree. And how changes to integrated data are audited across systems. Without those, integration produces two versions of the truth and a reconciliation spreadsheet.
